| Place of Origin: | China |
| نام تجاری: | JVT |
| گواهی: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2003&2004-Series |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| قیمت: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| equivalent: | molex 51005&51006 series | pitch: | 2.0mm |
|---|---|---|---|
| poles: | 2 - 16 | Packaging Type: | PE Bag Packing |

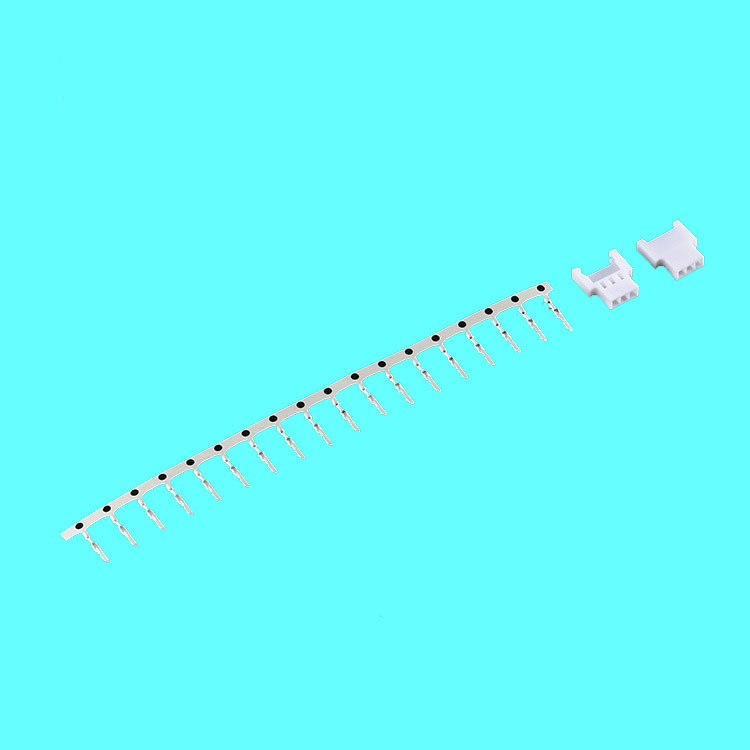

2.00mm Pitch Wire-to-Wire Plug Housing connector , 6 Circuits,Gender:male/female ,cross molex 51006 series
Detailed Features:
Part Number: JVT2003&JVT2004
Color - Resin: Natural
Flammability :94V-0
Category: 2.0mm pitch
Equivalent: Molex 51006-0600
Molex 51005/51006 2.0mm Wire to Board Connector with Poles 2 - 16
Standardized Specification:
|
Scale |
2.0mm |
|
Cables |
2-16 |
|
Applicable wire |
AWG#24-28 |
|
Rating Voltage |
125V AC/DC |
|
Rating Current |
2A AC/DC |
|
Withstand voltage |
500V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification :
Terminal: Phosphor Bronze ,Tin plated
Housing: PBT UL 94V-0
Technical Datasheet:
