| Place of Origin: | China |
| نام تجاری: | JVT |
| گواهی: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1144 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| قیمت: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | Wire-to-Board Connectors | Pitch: | 2.00mm |
|---|---|---|---|
| Circuits: | 2 - 15 | Current: | 2.0A |

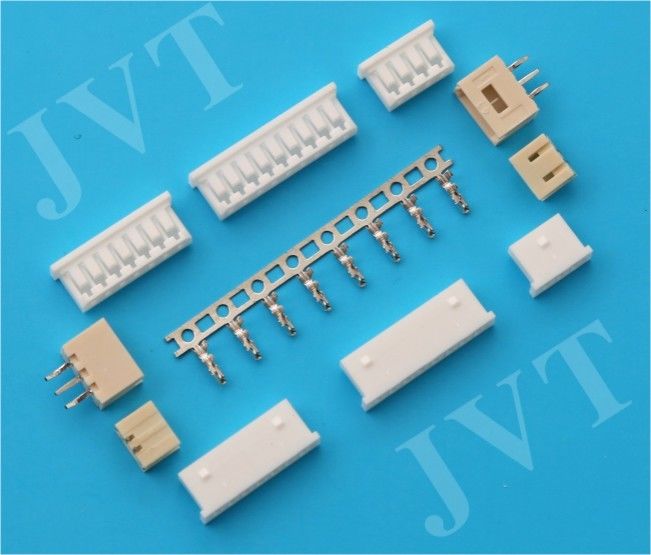

3 Circuits 5.80mm Height Wire to Board Connector , Friction Lock Wire to Board Header
2.00mm Pitch Wire-to-Board Housing, Friction Lock, 5.80mm Height, 3 Circuits,JVT supply equivalent connector of molex
Material Specification :
|
Terminal: |
Phosphor Bronze ,Tin plated |
|
Housing: |
PA66,UL94V-0 |
|
Wafer: |
Nylon 66 UL94V-0 |
|
PIN: |
Brass ,Tin plated |
Standardized Specification:
Pitch: 2.0mm Poles: 2-15
Applicable wire: AWG#24-28 Voltage rating: 125V AC/DC
Current rating: 2A AC/DC Withstand voltage: 1000V AC/minute
Working temperature: -25°C to +85°C Insulation resistance: 1000MΩ Min
Contact resistance: 20MΩ Max.
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
