Place of Origin: | China |
نام تجاری: | JVT |
گواهی: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT6503 |
Minimum Order Quantity: | 1000 PCS |
---|---|
قیمت: | Negotiation |
Packaging Details: | PE bag packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
Application: | Signal, Wire-to-Wire | equivalent: | JST SM series |
---|---|---|---|
Pitch - Mating Interface: | 2.5mm | poles: | 2 - 15 |
Category: | Crimp Housings | Flammability: | 94V-0 |

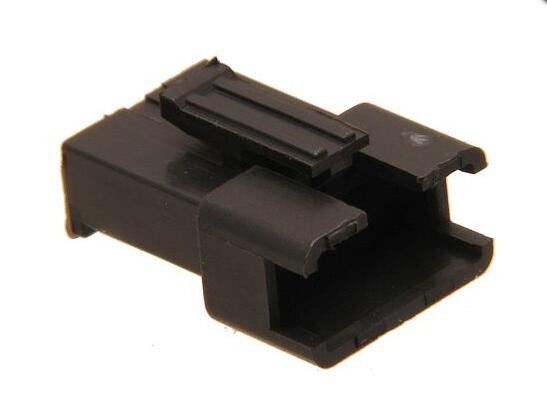

male 2pin . 2.50mm 250V, 1A, AWG#28-#22, housing material: NYLON 66, operating temp.: -25-85C
Datasheet (PDF) & Other Documents Download center:
JVT 6504 series is offered in wire-to-wire options. It is a single row system, available in 2 to 15 circuits, with both surface mount and through-hole headers.
A full range of automatic, semi-automatic and manual tooling is available to support crimp harness assembly using discrete wires.
Specification Standardized:
Insulator Material:PA66
Insulator Flammability: UL94V-0
Terminal Material: Phosphor bronze or brass
Operating temperature: -25 + 85°C
Climatic category (IEC): 55/125/21
Operating Humity range: Annual mean 75%
Insulator color: black
T
Application
Our products are widely used in a variety of markets and applications, including:
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
