| Place of Origin: | China |
| نام تجاری: | JVT |
| گواهی: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | XC-JVT0800 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| قیمت: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Cross: | JST | category: | wire -board -connector |
|---|---|---|---|
| applicable wire: | 32# AWG | Type: | Indiviual wire with polarized |
| Color: | Black Cable |

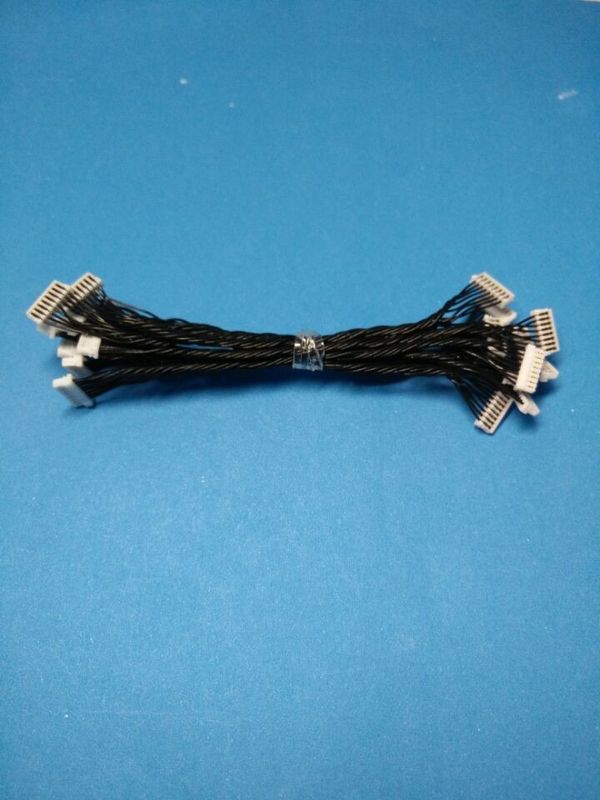

PA66 UL94V-0 Wire to Board Connector , 2 - 22 Circuits 0.8mm Indiviual wire with polarized

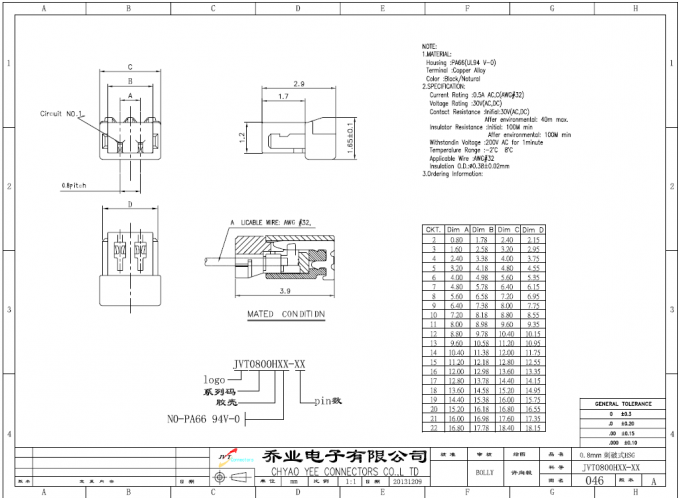

Drawing:
Standardized Specification:
|
Pitch |
0.8mm |
|
circuit |
2-22 |
|
Applicable wire |
AWG#32 |
|
Rating Voltage |
30V AC/DC |
|
Rating Current |
0.5A AC/DC |
|
Voltage Withstand |
200V AC/minute |
|
|
|
|
Insulation resistance |
100MΩ Min |
|
Contact resistance |
10MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
